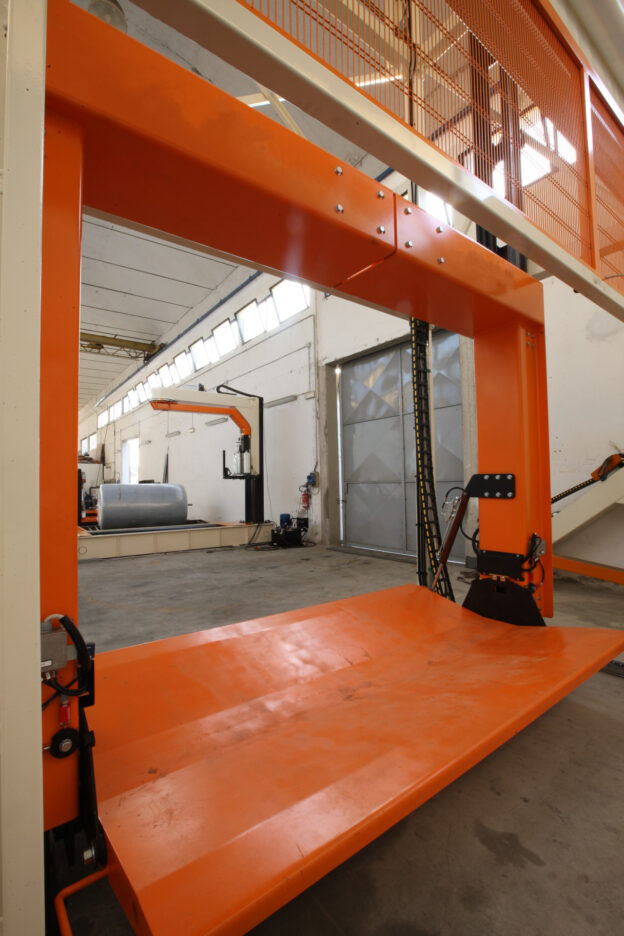

The elevator for reels MxL features a heavy metallic structure and an oscillating cradle or conveyor for reels.
Supporting main frame composed by a couple of columns equipped with Winker type guides
Bracing Structure in metal tubular
Lifting system composed by a double pair of hydraulic cylinders. The two systems, one for each column, are each composed by a pair of cylinders; the two cylinders are joined on the shirt, but rotated 180° relative to one another
Supporting structure of the cradle or conveyor for vertical sliding; the structure is connected with columns by means of Winker type wheels
If cradles, it’s driven by two hydraulic pistons 80-30 stroke 400 mm. If conveyor, it’s driven by gearbox. The cradle is capable of an oscillating movement to receive the reel, then unload the reel once it reaches the ground floor.
N°2 Sectional doors positioned on every exit of the elevator. Doors are composed by a PVC and metallic mesh which avoid access to the working area by operators
Hydraulic plant including valves, joint, pipes and everything needed for machine running
